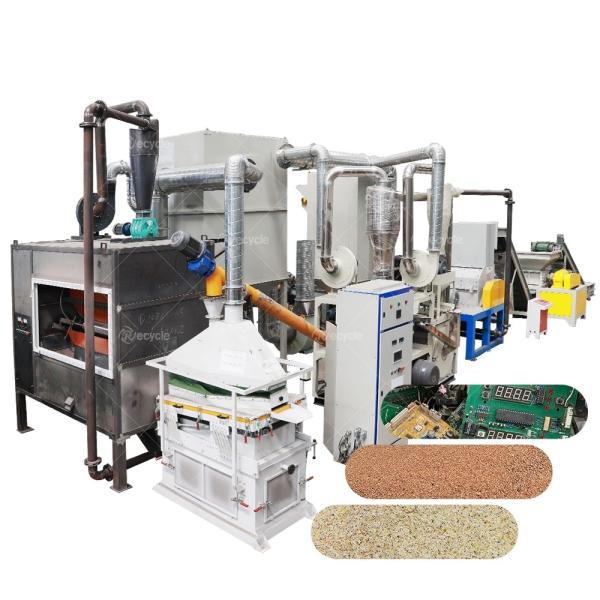

300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant

Place of Origin : Henan, China

Brand Name : Recycle

Model Number : RSKPCB-300

Certification : CE ISO of the Computer Motherboard Recycling Plant

Packaging Details : Scrap Printed Circuit Board Recycling Plant will be packed in the standard wooden case or containers or as customer requirement

Supply Ability : 50 Set/Sets per Month Scrap Printed Circuit Board Recycling Plant

Price : $85,000.00/sets 1-2 sets

Type : Waste PCB Recycling Machine

Condition : New

Applicable Industries : Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Farms, Home Use, Retail, Construction works , Energy & Mining, Recycle Factory

Showroom Location : Indonesia, Thailand, UAE

Warranty : 1 Year

Power : 120, 100-300KW of the Computer Motherboard Recycling Plant

Material : Container

Production Capacity : 300kg/h

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Marketing Type : New Product 2023

Warranty of core components : 1 Year

Core Components : Motor

Weight (KG) : 15000 kg

Application : PCB Waste Treatment

Product name : Scrap Printed Circuit Board Recycling Plant

Function : Non-metal and Metal separation

Weight : 15t-40t

Capacity : 200-1000kg/h

Color : Blue of the Computer Motherboard Recycling Plant

Name : Computer Motherboard Recycling Plant

Raw material : Computer Or Phone Board

Port : Qingdao Port or Other assigned Port

Contact Now

Scrap Printed Circuit Board Recycling Plant Computer Motherboard Recycling Plant
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant

Product Application
E-waste PCB Recycling Plant is used to recycle all kinds of Printed Circuit boards, such as the computer boards, cell phone boards, TV boards, copper-clad laminate, and other household appliances, and the separation of leftover material of the mixed metal and nonmetal materials.
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant

Final Products

Because of the high value of the metals, fiber and resin, there is no doubt that this plant not only help to change waste into treasure, but also bring great economic benefits.Through years of practice and theoretical analysis, we obtain the best separation result, the separating purity can reach to 99%.
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Technical Parameters
Model
Power (Kw)
Weight (Ton)
Capacity (Kg/H)
Dimension (m)
RSK-PCB300
102
15
200-300
20*5*5
RSK-PCB500
134
20
400-500
25*6*5
RSK-PCB800
194
30
600-800
30*6*5
RSK-PCB1000
238
40
800-1000
35*8*5
NOTE:
Working voltage:380±10V(415V ,440V also can be customized)
(If you want more detailed parameters and quotations, please contact us)
Product Structure
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
The E-Waste PCB Recycling Plant consists of shredding system, milling system, sorting system and dust collection system, the whole process is controlled by PLC.
Through shredding, grinding, vibration screening, (the incompletely separated metal and nonmetal will reentry into the grinding machine to be grinded again) gravity separating, electrostatic separating and pulse dust collecting, the metal and nonmetal will reach about 99% of separation, eventually get metal and non-metallic collective, and the valuable components after dismantling machine can also be recycled refined.
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Process Description
The first crushing machine we choose the double shafts shredder, and the second crushing machine we use the hammer crusher, and the third crushing machine we use the high speed turbine grinding machine, the material after shredding, crushing and grinding will be separated by the air separator and the electrostatic separator.
It has the advantages of unique structure, large output and power saving. Several machines cooperation work after single loading of materials. Controlled by PLC This machine has good performance in copper recycling and comes with a device to prevent against secondary pollution The metal recycling rate is up to99% which is the only in china.
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant

Product Features
1. Suitable structure and layout, stable performance and recycling water is used to control temperature and reduce noise in the grinder;
2. E-waste PCB Recycling Plant adopts PLC system, electrostatic separator makes higher and quicker separation, moreover gets more non-ferrous metal;
3. The negative pressure feeding system prevent the dust from running out, the separation rate of pulse dust cleaning device can reach 99%;
4. The separation rate of air separator can reach 97%, with the magnetic separator, the iron can be separated from other metals.
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Related Configuration
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Customer Site
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Customer Visiting
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Quality Assurance
300kg/h PCB Recycling Machine Scrap Printed PCB Board Recycling Plant
Company Show
As one of the largest E-waste and Other Solid Waste Metal Recycling Machine manufacturer, our factory can provide the whole solutions. Perfect after-sales service is provided and CE certification is provided for all products.
We can dispatch engineers to overseas to help you with installation, training if you need.
Our Company has advanced technology, professional R&D team and perfect sales service system. Besides, we possess several patents and domestically-leading technologies. Our advanced equipment have been currently exported to USA, Spain, Turkey, Italy, Vietnam,Hungary, Australia, Korea, Malaysia, Singapore, India, Philippines, Ireland, Saudi Arabia, Dubai etc.
